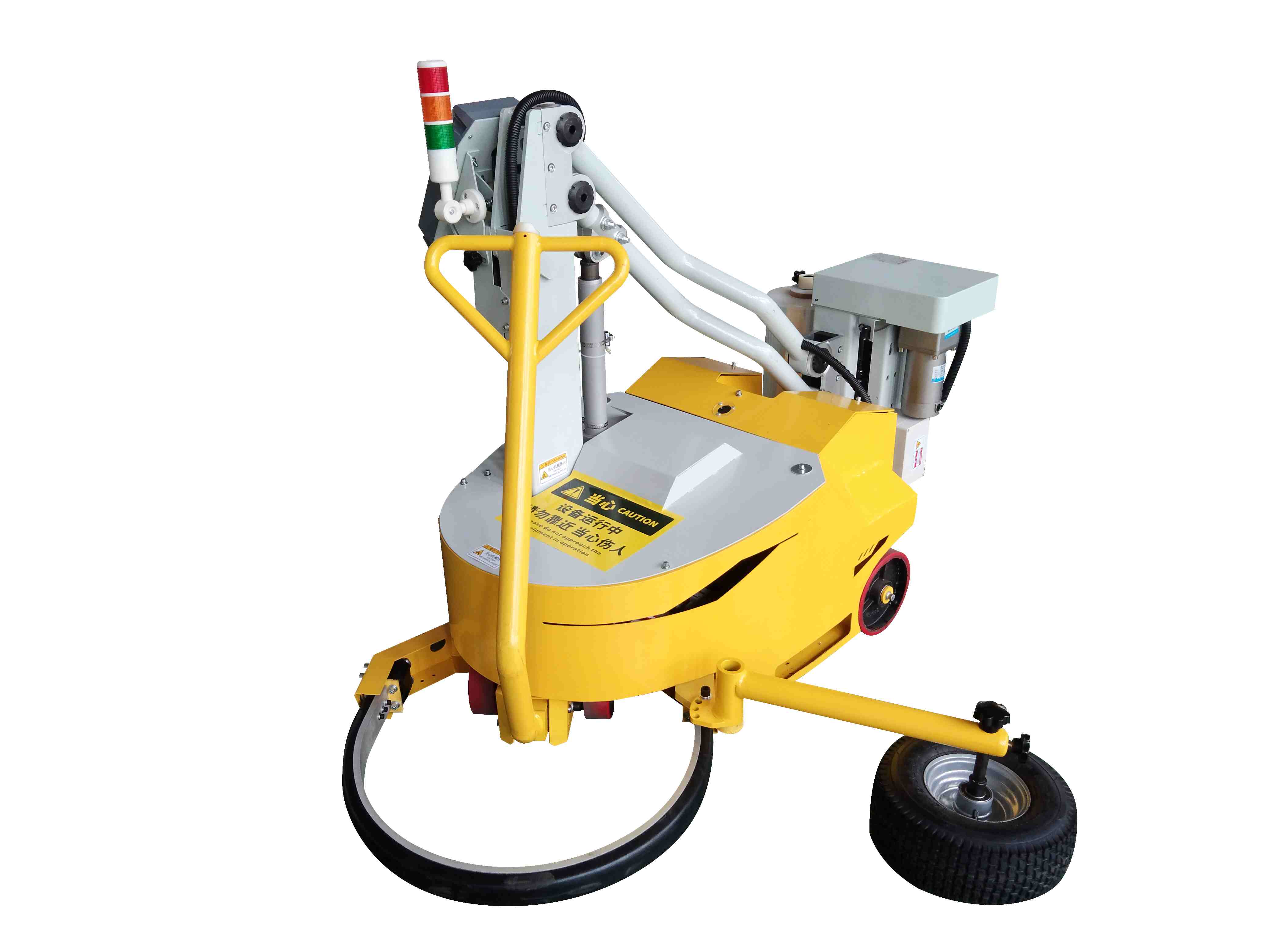

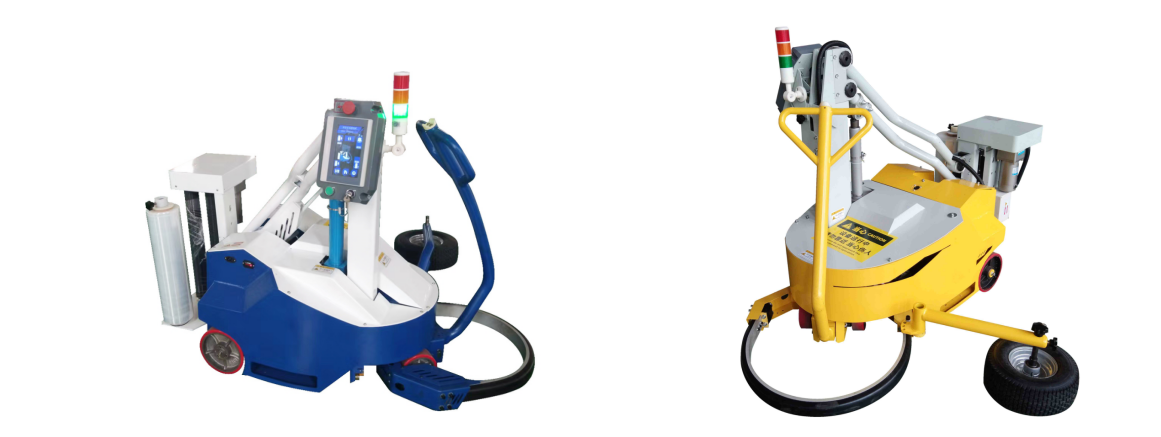

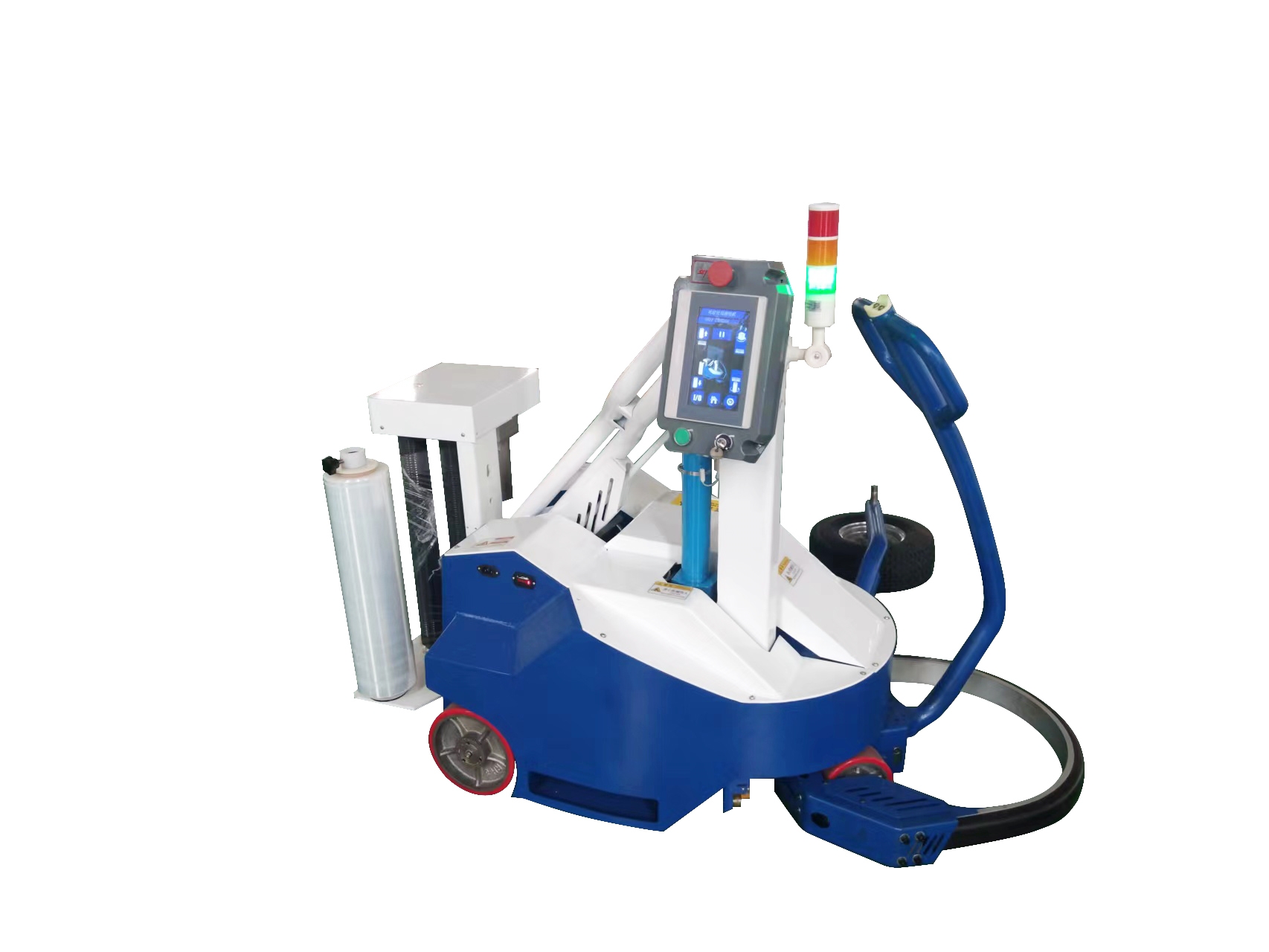

Curved arm self-propelled wrap-around packaging machine
1：We Lujia have 15000 square meters of production workshop, with independent welding ability, welding using welding robot for welding, fast speed, smooth and beautiful surface.
2: We Lujia has independent laser doweling ability, all processing parts are cut with high power laser machine oxygen, cutting parts without burr, fine, beautiful.
3：We Lujia has independent bending processing capacity, bending and cutting a narrow and smooth incision, no rounded corners and mechanical undercutting often have a burr.
4: We have independent design and development capabilities, independent assembly capabilities, independent after-sales capabilities. Lujia Intelligent for high-tech enterprises, specializing in new enterprises, small and medium-sized science and technology enterprises, the company's products have passed the European Union CE certification, 1S09001 quality and environmental system certification, 1S045001: occupational health and safety management system, 1S014001: environmental management system certification.

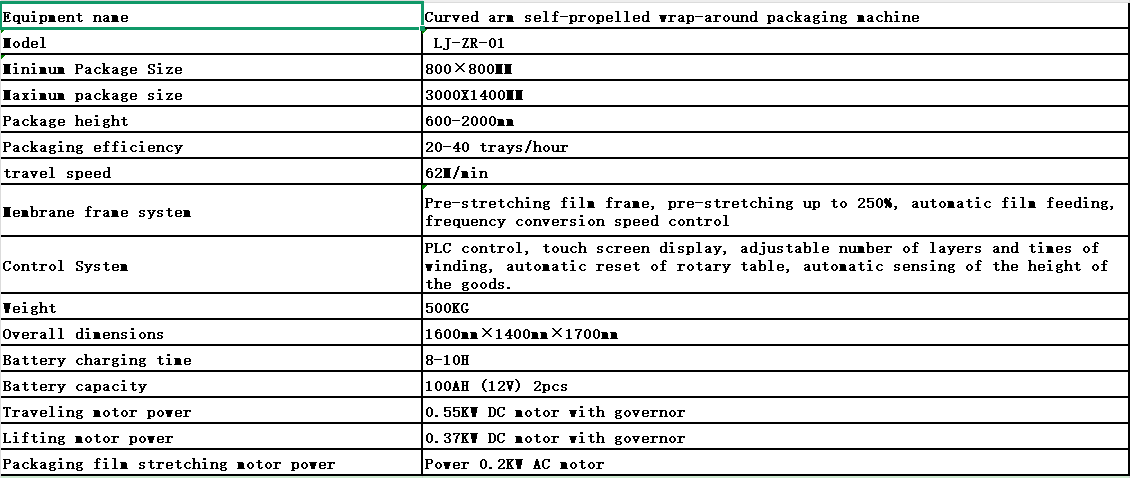

Self-propelled film wrapping machine LJ-ZR-01 and technical parameters:
I. Performance Introduction
This equipment is a self-propelled pre-stretch film wrapping machine, through the use of wrapping film to wrap and fix the cargo pallet, the product is suitable for the packaging requirements of cargo consolidation storage, transportation and mechanized loading and unloading operations, widely used in foreign trade and export, food and beverage, irrigation, papermaking, dyestuffs, plastics and chemical industry, glass and ceramics, electromechanical casting and other products of the consolidation of the cost, improve the efficiency of production, and prevent the damage to goods in the process of handling, and dustproof and moistureproof and cleaning. It can also prevent the goods from being damaged in the process of transportation, and play the role of dust-proof, moisture-proof and cleaning.
The product structure is compact, beautiful appearance, advanced technology, the use of strict machine operation safety protection measures. At the same time for the convenience of non-professionals to use this equipment, the use of measures to reduce the complexity of the operating panel, so that the operation of the equipment is simple and easy to understand, convenient.
Second, the characteristics:
1. Winding operation time, can work continuously for 24-72 hours. (depending on the specific goods)
2、 The control system is controlled by a special system to drive the motor with frequency converter and control the mechanical drive mechanism to realize stepless speed regulation, which is stable and reliable, and the equipment is easy to use and maintain, and adopts the curved-arm design to save the use of space.
3、 It can automatically detect the height of the outer packaging material, and the number of packaging circles can be set.
4、Film pulling mechanism: automatic pre-stretching type (film pre-stretching ratio up to 1:2.5)
5、The whole system is easy and flexible for one person to operate:
6, the bottom of the machine with its own wheels can be moved freely, and also equipped with a forklift to move the position, easy to move
7, the machine is equipped with internal charging system, with a collision avoidance ring, personnel do not touch the equipment after the automatic shutdown
8、No pollution emission, can work in the ultra-clean room.
