Automatic Folding and Sealing Machine
Shandong Lujia Intelligent Technology Co.
1: We have independent design and development capabilities, independent assembly capabilities, independent after-sales capabilities. Lujia Intelligent for high-tech enterprises, specializing in new enterprises, small and medium-sized science and technology enterprises, the company's products have passed the CE certification of the European Union, 1S09001 quality and environmental system certification, 1S045001: Occupational Health and Safety Management System, 1S014001: Environmental Management System certification.
2: We Lujia has independent laser doweling ability, all processing parts are cut with high power laser machine oxygen, cutting parts without burr, fine, beautiful.
3：We Lujia have 15000 square meters of production workshop, with independent welding ability, welding using welding robot for welding, fast speed, smooth and beautiful surface.

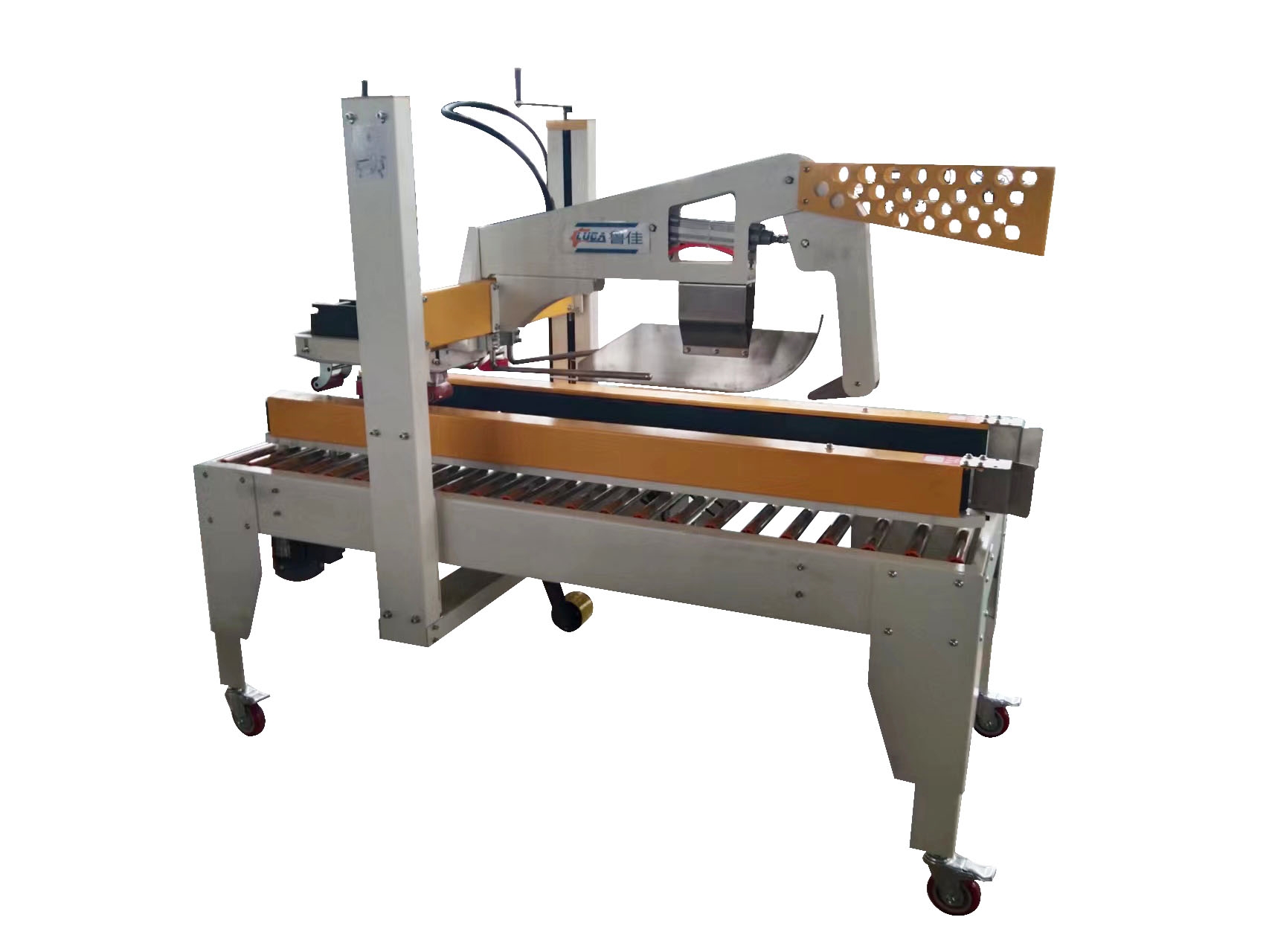

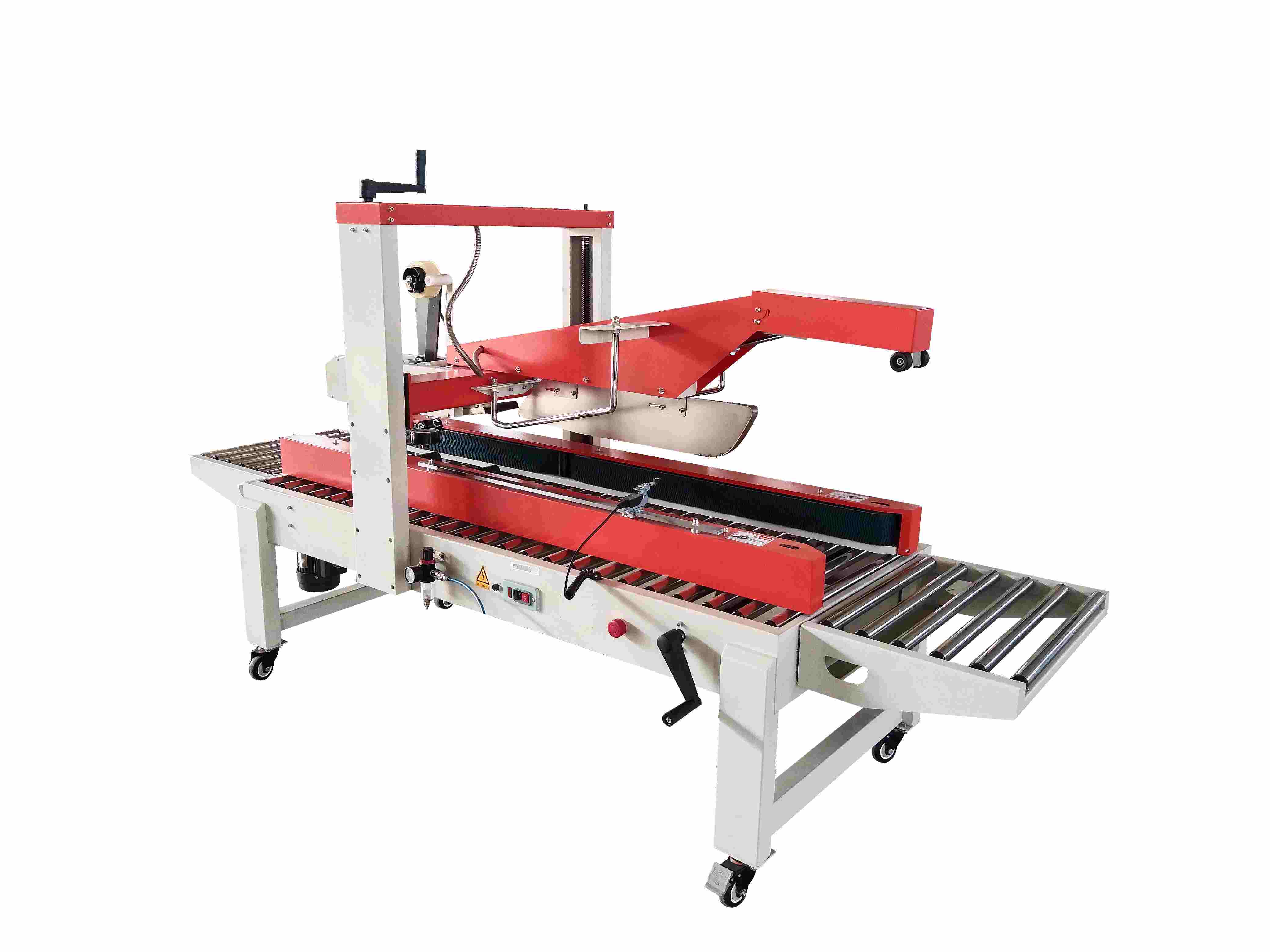

Automatic Folding and Sealing Machine
Equipment Introduction
LJ-FJ5050 is an automatic one-line folding and sealing machine, with high efficiency of folding and sealing, neat and beautiful packaging. It is suitable for folding and sealing cartons with long or hard cartons, and is compatible with cartons up to 700mm long. Pneumatic folding side cover function can minimize the damage to the carton when folding side cover. It is a sealing machine specially designed to work with assembly line. When cooperating with the assembly line, the carton folding and sealing device on the upper side of the sealing machine is activated by the belt-driven conveyor track on both sides, and the folding and sealing is completed at one time without manual supervision, which is suitable for connecting with the fully automatic production line.
Features of the equipment
Automatic folding and sealing of carton can be completed at one time, with high working efficiency, beautiful and solid packing effect, and can be customized to apply to a variety of carton specifications.
Adopting advanced sealing liner, flatten the protruding part of carton to make the tape fit on the surface of carton. Flat cut, beautiful sealing, firm and wear-resistant.
More convenient to move, casters with brakes, firmly fixed and not easy to slide.
High-quality thick conveyor belt, conveying cartons while fixing the position of cartons. For large carton sealing and positioning, easy to deal with deformation/not easy to pack the box.
Powerful dual motors, provide lasting power, double the efficiency.
| Equipment name | Automatic Folding and Sealing Machine |
| Model | LJ-FJ5050 |
| Power source | 220V/50HZ 870W/5A |
| Use of sealing materials | tapes |
| Sealing speed | 0-20m/min |
| Countertop Height | 580mm-680mm |
| Carton range | L:180-600mm W:150-500mm H:120-500mm |
| Tape Size | 48mm/60mm |
| Structural characteristics | Adopting two side belt drive design, upper and lower sealing structure |
| Machine Size | L2000*W935*H1500mm |
| Machine weight | 150kg |
| Use of gas supply | 0.6-0.7Mpa |
| electronic control | Imported controllers <<BCP)302N “DSI” motors are Lima, France “TE” buttons, “Schneider” electrical appliances”. “dsi” proximity switches. |
| Movement Material | magnesium aluminum alloy |
