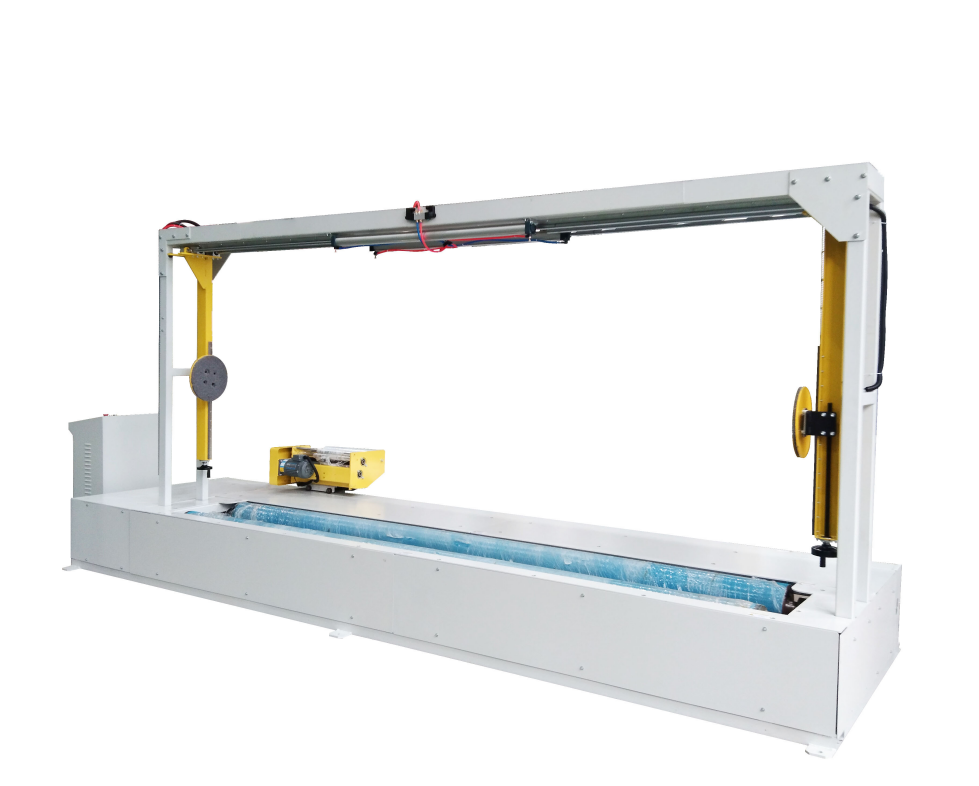

Radial Wrapping Machine
1：We Lujia have 15000 square meters of production workshop, with independent welding ability, welding using welding robot for welding, fast speed, smooth and beautiful surface.
2: We Lujia has independent laser doweling ability, all processing parts are cut with high power laser machine oxygen, cutting parts without burr, fine, beautiful.
3：We Lujia has independent bending processing capacity, bending and cutting a narrow and smooth incision, no rounded corners and mechanical undercutting often have a burr.
4: We have independent design and development capabilities, independent assembly capabilities, independent after-sales capabilities. Lujia Intelligent for high-tech enterprises, specializing in new enterprises, small and medium-sized science and technology enterprises, the company's products have passed the European Union CE certification, 1S09001 quality and environmental system certification, 1S045001: occupational health and safety management system, 1S014001: environmental management system certification.
| Equipment name | Radial Wrapping Machine |
| Model | LJ-JX3000 |
| Turntable diameter | φ2000mm |
| Cargo diameter | φ400-1500mm |
| Packaging Specifications | φ(1300)* L(3000)mm |
| Packaging efficiency | 10–30 pieces per hour |
| Roller load-bearing | 3000 kg（max） |
| Weight | 2000kg |
| Overall dimensions | 1600mm×1400mm×1700mm |
| Center distance between rollers | 250 mm |
| Roller wall thickness | 6mm |
| Power/Voltage | 4.5KW/AC380V |
| Gas consumption | 1000ml/min |
| Membrane frame system | Pre-stretching film frame, pre-stretching up to 250%, automatic film feeding, frequency conversion speed control |
| Control System | PLC control, touch screen display, adjustable number of layers and times of winding, automatic reset of rotary table, automatic sensing of the height of the goods. |
The radial stretch wrapping machine is specifically designed for the outer packaging needs of cylindrical products. This equipment is suitable for industries such as non-woven fabrics, meltblown fabrics, mask materials, and paper rolls. It can wrap products of varying weights with full-width surface wrapping, providing dustproof, moisture-proof, and cleanliness-preserving functions. Its technical solution supports multiple operational modes including composite packaging and inline wrapping, and can be equipped with an automatic ejection device as needed.
Features：
Utilizing wide-width surface wrapping technology to achieve 360° coverage
Supports packaging for lightweight products (500kg)
The built-in tension control system ensures uniformity of the film layer.
The built-in tension control system ensures uniformity of the film layer.
