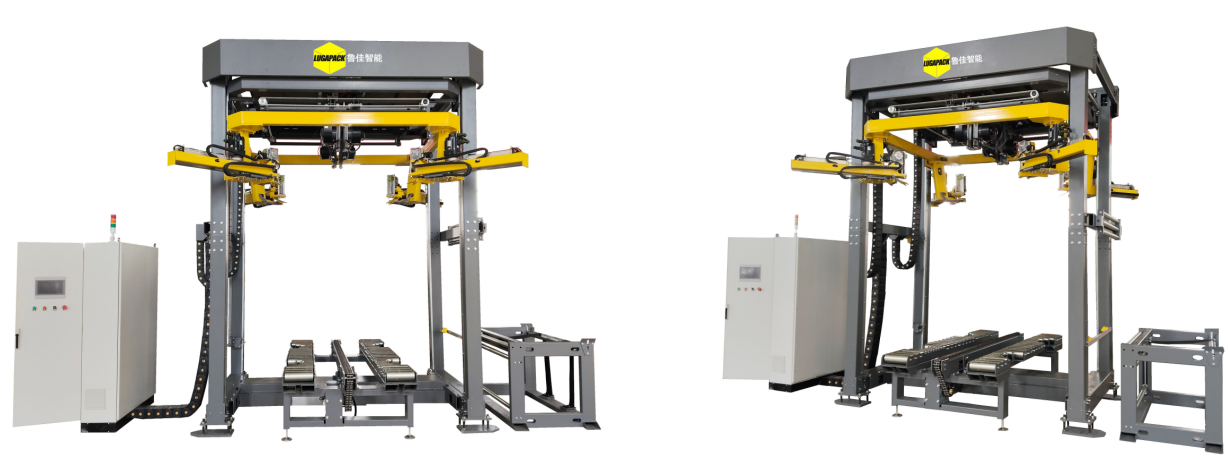

Cold stretch laminating machine
1：We Lujia have 15000 square meters of production workshop, with independent welding ability, welding using welding robot for welding, fast speed, smooth and beautiful surface.
2: We Lujia has independent laser doweling ability, all processing parts are cut with high power laser machine oxygen, cutting parts without burr, fine, beautiful.
3：We Lujia has independent bending processing capacity, bending and cutting a narrow and smooth incision, no rounded corners and mechanical undercutting often have a burr.
4: We have independent design and development capabilities, independent assembly capabilities, independent after-sales capabilities. Lujia Intelligent for high-tech enterprises, specializing in new enterprises, small and medium-sized science and technology enterprises, the company's products have passed the European Union CE certification, 1S09001 quality and environmental system certification, 1S045001: occupational health and safety management system, 1S014001: environmental management system certification.

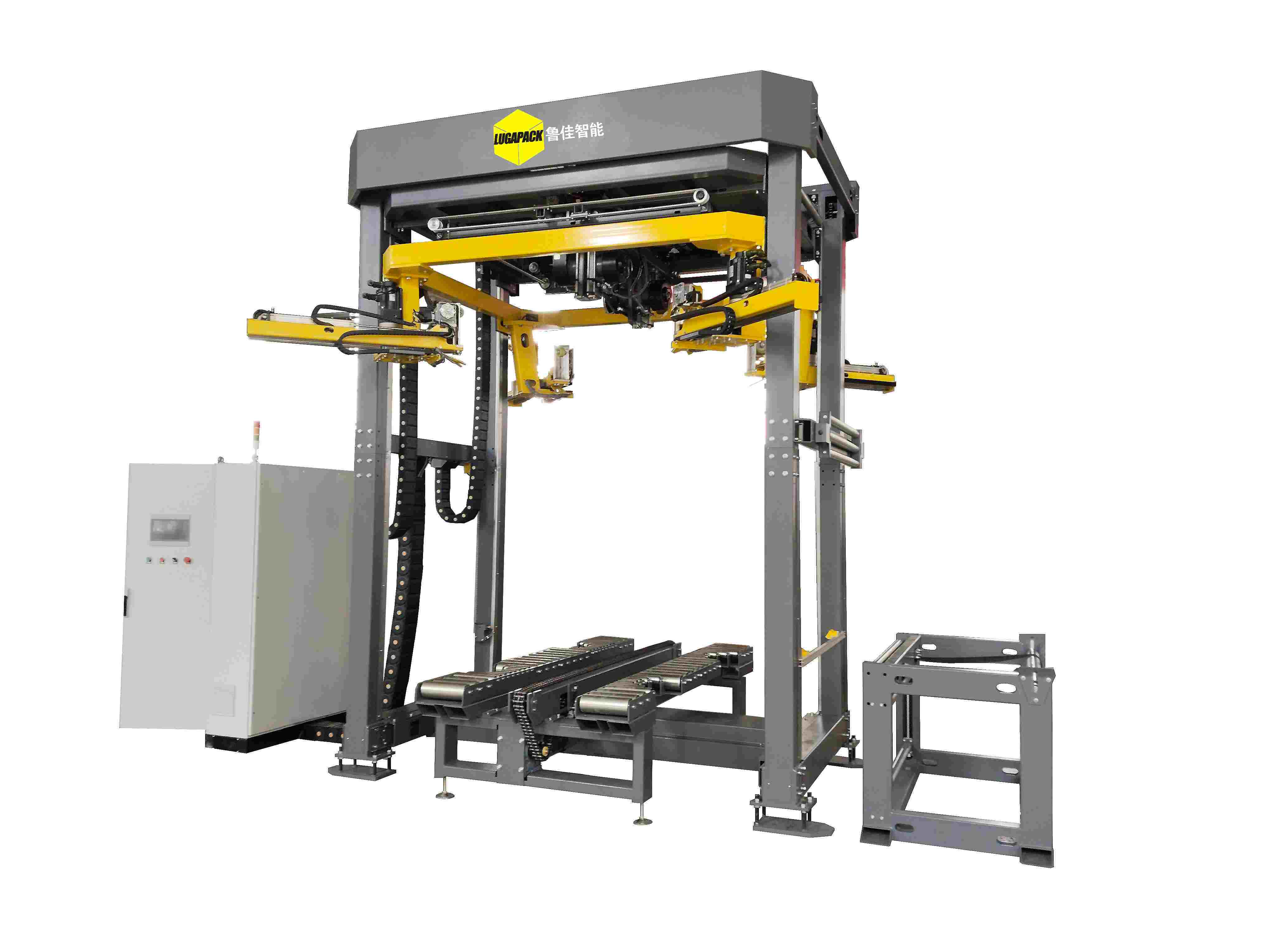

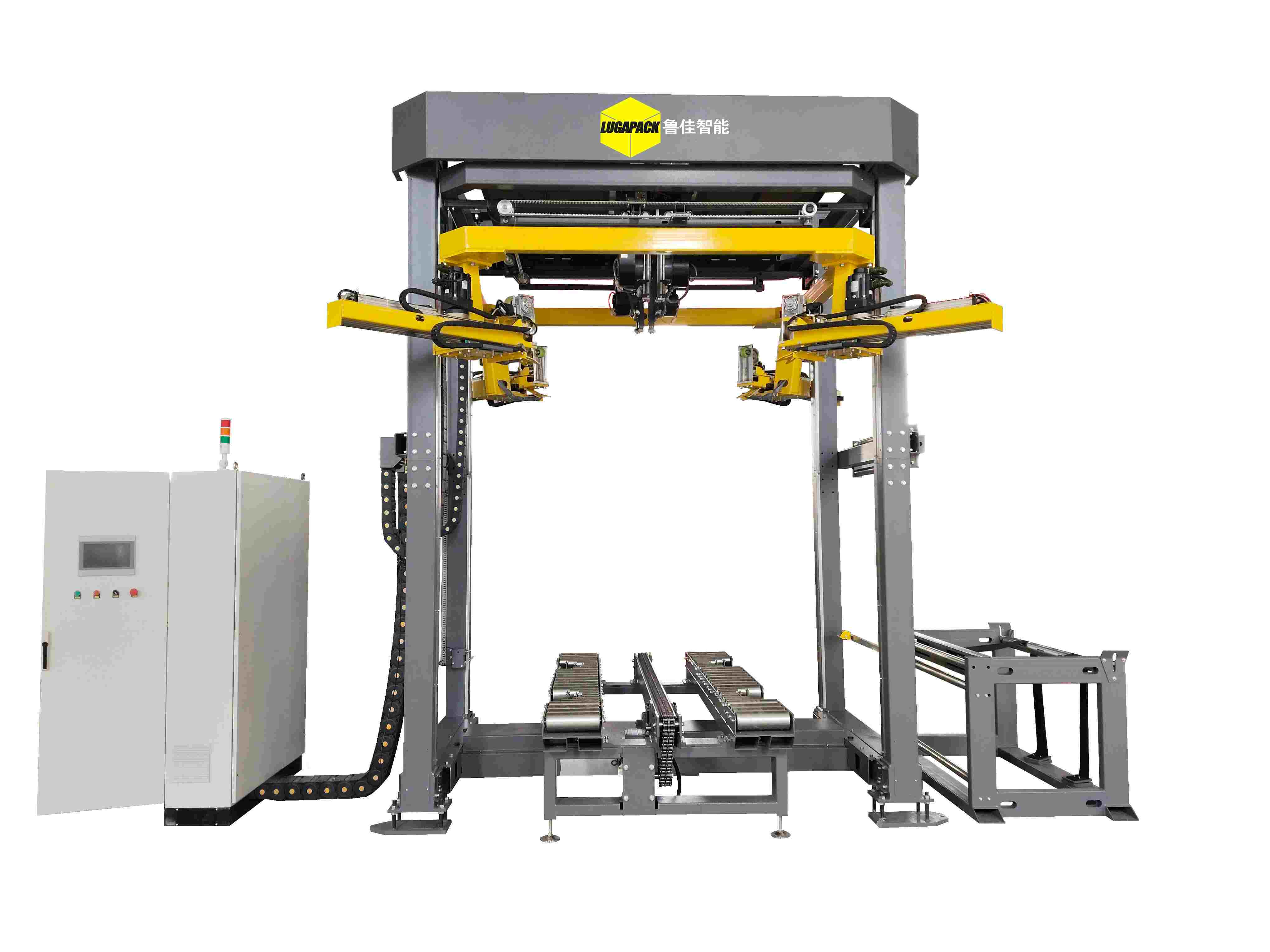

Cold stretch laminating machine
Cold stretch film packaging machine is a device that uses cold stretch film to automatically bag and package goods. Bag from top to bottom during work, relying on. The characteristic of cold stretch film is to shrink and package it onto a stamped surface, forming a four to five sided wrapping. It has the characteristics of waterproof, moisture-proof, and stable stamping. It can be used as a packaging terminal for automatic conveying systems or warehousing logistics systems, or it can be used independently.
The advantages of cold stretch packaging
1、Fast speed up to 40-50 pallets per hour;
2、Compared with heat shrinkage, high efficiency saves 70% energy and 30% materials;
3、Good appearance can achieve film printing, enhance product grade and visual experience;
4、Good weather resistance -20 ° to 60 ° still has good reinforcement and stability;
5、Rainproof full five sided packaging, moisture-proof and rainproof;
6、High degree of automation in safety and hygiene, no fire hazards, and improved working environment in packaging areas;
7、Due to the inherent characteristics of cold drawn film, high reinforcement can provide very little reinforcement to ensure the safety of product transportation and storage processes
| Equipment name | Cold stretch laminating machine |
| Model | LJ-LT1200L |
| Wrapping size | 1200mm×1100mm（L×W） |
| (max)Packing height | 1100-1800mm |
| Wrapping effciency | 40-50 trays/hour |
| Conveyor speed | 12 m/min |
| Conveyor line height | 650-700mm |
| Cold stretch film thickness | 0.1mm-0.12mm |
| tensile strength | 35mpa-40mpa |
| tear strength | 11 |
| coefficient of friction | Outer: 0.3, Inner: 0.24 |
| Membrane roll tube core | 3 inches |
| Environmental temperature during film covering | 10-35℃ |
| Hot melt sealing temperature | 110℃ |
| Total Weight | 3500KG |
| Dimensions | 4339mm×2500mm×3297mm |
| Power supply | 380V/50HZ |
| Supply pressure | 0.6MPa-0.7MPa |
| Gas consumption | About 100L/min |
| the dew point | -40℃ |
| Total power | About 15kw |
