Stretch Film Wrapping Machine
1：We Lujia have 15000 square meters of production workshop, with independent welding ability, welding using welding robot for welding, fast speed, smooth and beautiful surface.
2: We Lujia has independent laser doweling ability, all processing parts are cut with high power laser machine oxygen, cutting parts without burr, fine, beautiful.
3：We Lujia has independent bending processing capacity, bending and cutting a narrow and smooth incision, no rounded corners and mechanical undercutting often have a burr.
4: We have independent design and development capabilities, independent assembly capabilities, independent after-sales capabilities. Lujia Intelligent for high-tech enterprises, specializing in new enterprises, small and medium-sized science and technology enterprises, the company's products have passed the European Union CE certification, 1S09001 quality and environmental system certification, 1S045001: occupational health and safety management system, 1S014001: environmental management system certification.
| Equipment name | Film wrapping and baling machine---M type film wrapping and baling machine |
| Model | LJ-DB700A+TP1650F |
| Power source | 350V/50HZ 3500W/15A |
| Use of packing tape materials | Polypropylene PP belt/PET plastic steel belt |
| Packing speed | minutes/tow |
| Matching conveyor height | 500mm, can be customized according to the actual height |
| Effective bundle size | Frame size 1450*1400mm, disk diameter: 1650mm |
| Pallet Size:L1100-1200xW1100-1200xH1100-1200mm | |
| Bonding method | hot-melt method |
| Ironing method | Side Gluing |
| Ironing head position | sidebar |
| Bundling method | //and/or vertical tic-tac-toe |
| Applicable strapping | Width 13 (±0.1) mm, thickness 0.9 (±0.1) mm (optional) |
| Applicable Stretch Film | Pre-stretched film: Thickness: 25~35μm, metallocene addition 30-40%， Film roll specification: Φ200-Φ260mm (outer diameter) x 500 mm (width)，Film core specification: Φ76.2 mm (core inner diameter) x 520 mm (width) |
| environmental temperature | 0℃-50℃ |
| Environmental humidity | ＜99% |
| operating noise | ≤75 dB |
| Tightening force | >600 Newtons |
| Hot Stick Tension | > 900 Newtons |
| Hot-stick bonding length | ≥ 20 mm |
| Overall dimensions | L5250*W2450*H2650mm |
| Movement Material | magnesium aluminum alloy |
| Bow frame material | External carbon steel spraying internal aluminum alloy composition |
| Whether or not to bring the broken film | clogged |

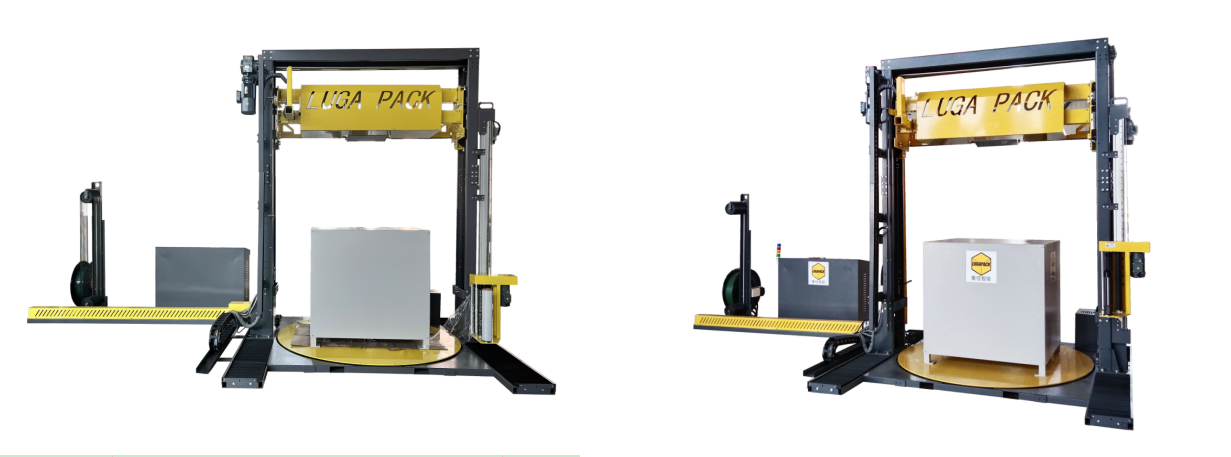

Stretch wrapping and strapping machine
This machine is designed for circumferential wrapping (LLDPE stretch film) and cross strapping of entire stacks. All internal packaging processes are performed automatically.
1. Bundle first, then wrap: The forklift first loads the goods onto the turntable of the stretch wrapping machine, then exits the work area. The operator also exits the work area. Press the “Start” button on the remote control to enter automatic operation mode. The wrapping machine first runs at a slow speed (this speed can be adjusted). If four cross-shaped bundles are set, the packaging machine can move forward and backward to complete the packaging. After wrapping, the film wrapping machine performs another side of the wrapping process. After wrapping, the film wrapping machine wraps the film, and upon completion, it automatically resets and cuts the film. The forklift operator unloads the goods.
2. Wrap first, then bundle: The forklift first loads the goods onto the turntable of the wrapping machine, then exits the work area. The operator exits the work area, presses the “Start” button on the remote control to enter automatic operation mode, and starts the wrapping machine. The wrapping machine automatically applies the film and begins rapid operation to wrap the goods. Once wrapping is complete, the film is automatically cut. If set to tie 4 straps, after the packaging machine completes the strapping, the wrapping machine stops in place, automatically cuts the film, and waits for the forklift to remove the goods.
3. Tie only, no wrap: The forklift first loads the goods onto the machine, then exits the work area. The operator presses the “Start” button on the remote control to enter automatic operation mode, and the equipment performs only the strapping action.
4. Only wrapping without bundling: The forklift first loads the goods onto the machine, then exits the work area. The operator also exits the work area. The remote control presses the “Start” button to enter automatic operation mode, activating the wrapping machine. The wrapping machine begins rapid film wrapping. Once wrapping is complete, it automatically cuts the film and waits for the forklift to remove the goods.
