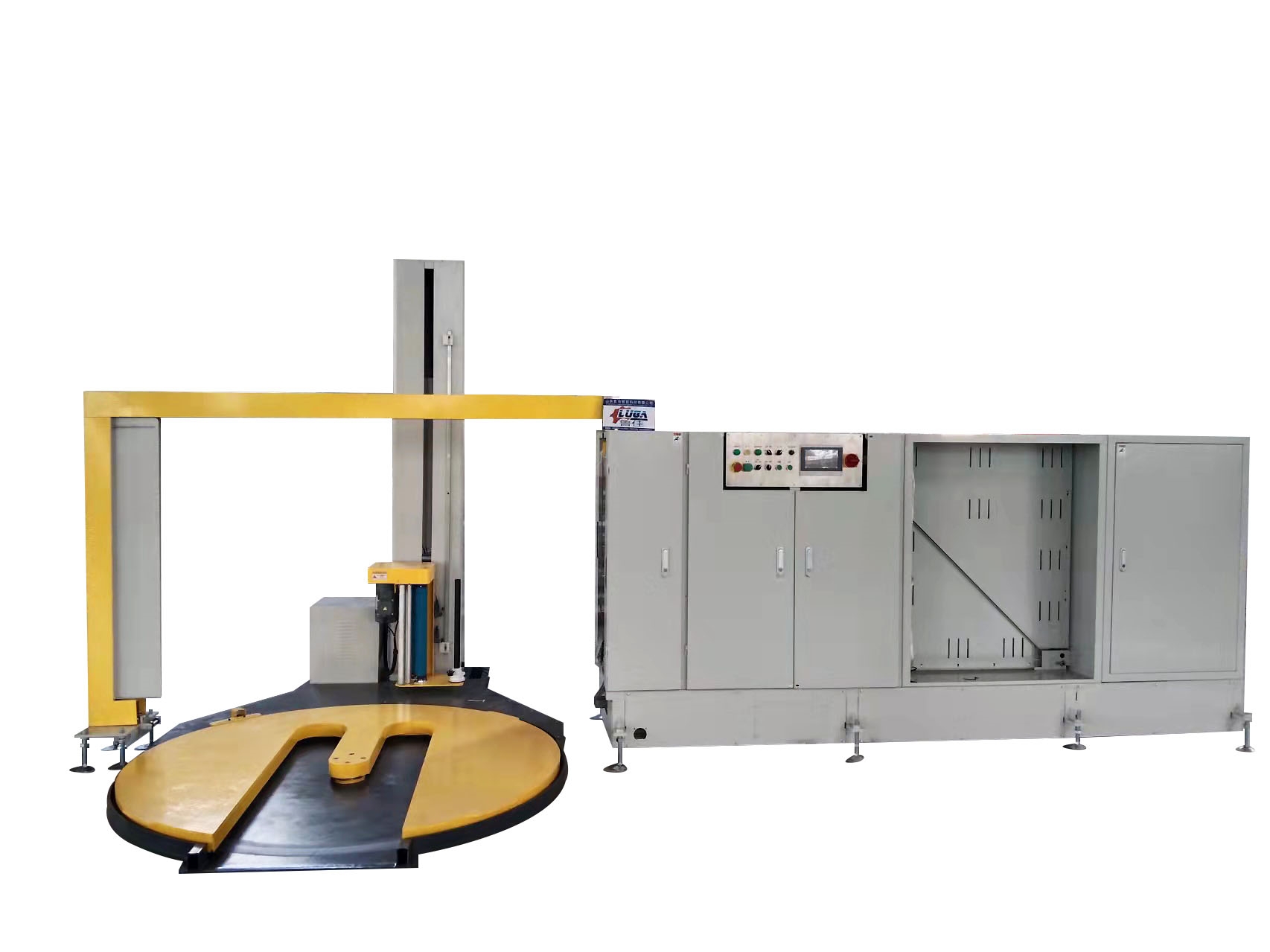

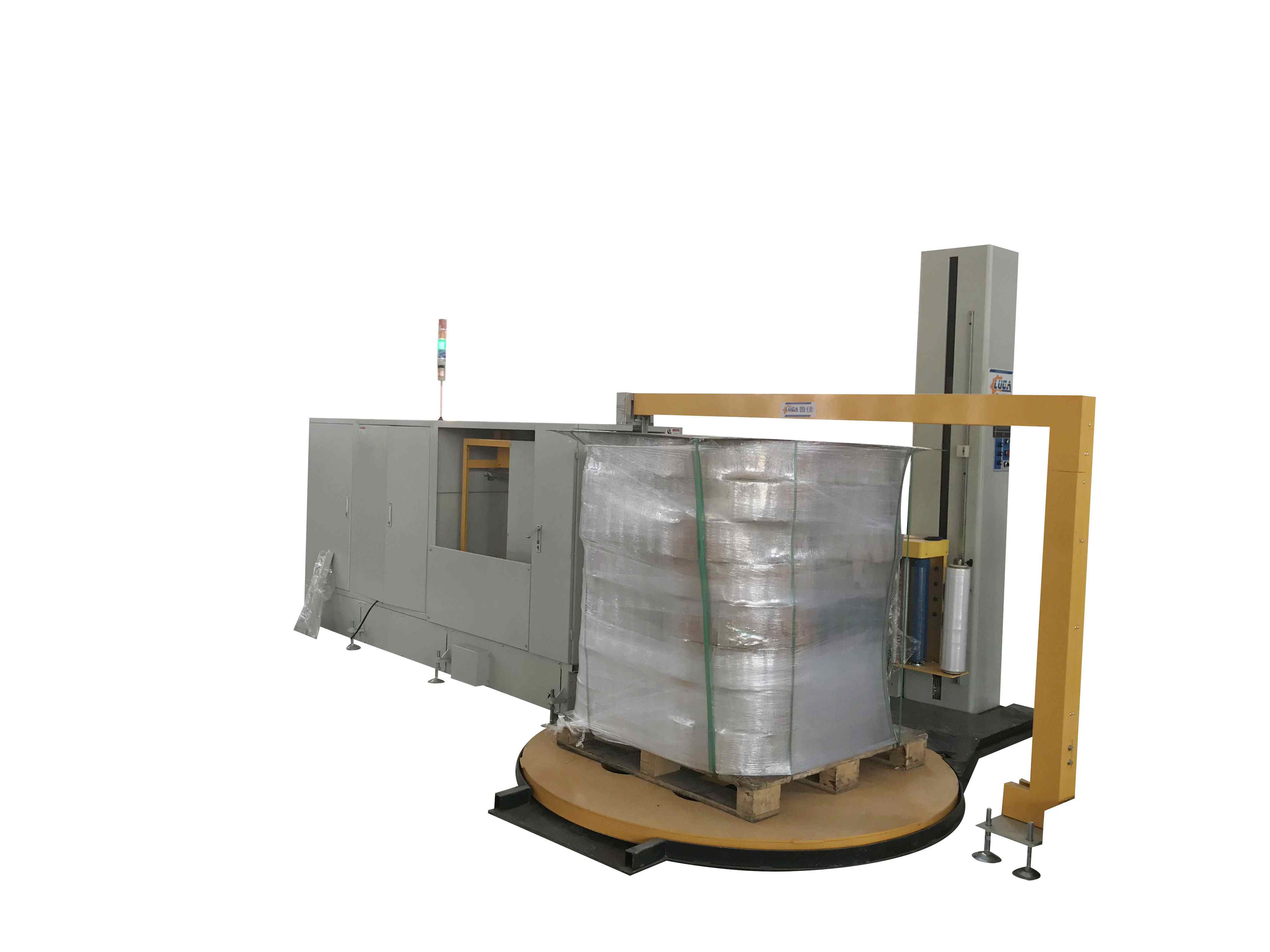

Film wrapping and baling machine

1:We Lujia have 15000 square meters of production workshop, with independent welding ability, welding using welding robot for welding, fast speed, smooth and beautiful surface.

2: We Lujia has independent laser doweling ability, all processing parts are cut with high power laser machine oxygen, cutting parts without burr, fine, beautiful.

3:We Lujia has independent bending processing capacity, bending and cutting a narrow and smooth incision, no rounded corners and mechanical undercutting often have a burr.

4: We have independent design and development capabilities, independent assembly capabilities, independent after-sales capabilities. Lujia Intelligent for high-tech enterprises, specializing in new enterprises, small and medium-sized science and technology enterprises, the company's products have passed the European Union CE certification, 1S09001 quality and environmental system certification, 1S045001: occupational health and safety management system, 1S014001: environmental management system certification.

Such a company has a guarantee of after-sales service, quality and brand, which is why I suggest you choose Lujia Intelligent. Quality is the foundation of the enterprise!


Product Details

This machine is designed for circumferential wrapping (LLDPE stretch film) and tic-tac-toe wrapping of the entire pallet. All the packaging processes carried out inside the machine can be automated


Use of packing tape materialsPolypropylene PP belt/PET plastic steel belt
Packing speedminutes/tow
height500mm, can be customized according to the actual height
Effective bundle sizeFrame size 1450*1400mm, disk diameter: 1650mm
Pallet Size:L1100-1200xW1100-1200xH1100-1200mm
Bonding methodhot-melt method
Ironing methodSide Gluing
Ironing head positionsidebar
Bundling method//and/or vertical tic-tac-toe
Applicable strappingWidth 13 (±0.1) mm, thickness 0.9 (±0.1) mm (optional)
Applicable Stretch FilmPre-stretched film: Thickness: 25~35μm, metallocene addition 30-40%, Film roll specification: Φ200-Φ260mm (outer diameter) x 500 mm (width),Film core specification: Φ76.2 mm (core inner diameter) x 520 mm (width)
environmental temperature0℃-50℃
Environmental humidity<99%
operating noise≤75 dB
Tightening force>600 Newtons
Hot Stick Tension> 900 Newtons
Hot-stick bonding length≥ 20 mm
Overall dimensionsL5250*W2450*H2650mm
Movement Materialmagnesium aluminum alloy
Bow frame materialExternal carbon steel spraying internal aluminum alloy composition
Whether or not to bring the broken filmclogged
