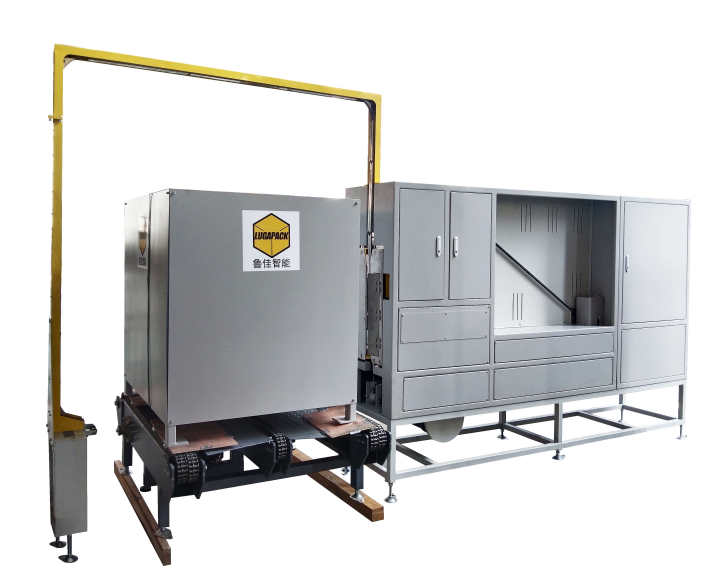

Explosion-Proof Through-Sword Strapping Machine
1：We Lujia have 15000 square meters of production workshop, with independent welding ability, welding using welding robot for welding, fast speed, smooth and beautiful surface.
2: We Lujia has independent laser doweling ability, all processing parts are cut with high power laser machine oxygen, cutting parts without burr, fine, beautiful.
3：We Lujia has independent bending processing capacity, bending and cutting a narrow and smooth incision, no rounded corners and mechanical undercutting often have a burr.
4: We have independent design and development capabilities, independent assembly capabilities, independent after-sales capabilities. Lujia Intelligent for high-tech enterprises, specializing in new enterprises, small and medium-sized science and technology enterprises, the company's products have passed the European Union CE certification, 1S09001 quality and environmental system certification, 1S045001: occupational health and safety management system, 1S014001: environmental management system certification.
| Equipment name | Explosion-Proof Through-Sword Strapping Machine |
| Model | LJ-DB700A |
| Power source | 350V/50HZ 250W/15A |
| Use of packing tape materials | Polypropylene PP belt/PET plastic steel belt |
| Packing speed | 15-20S/strip |
| Matching conveyor height | 500mm, can be customized according to the actual height |
| Effective bundle size | Frame size 1450*1400mm |
| Pallet size:Lmax unlimitedWmax1200Hmax1200 | |
| Bonding method | hot-melt method |
| Ironing method | Side Gluing |
| Ironing head position | sidebar |
| Bundling method | Parallel 1-multiple channels, photoelectric control 1-4 channels |
| Applicable strapping | Width 13 (±0.1) mm, thickness 0.9 (±0.1) mm (optional) |
| hot-stick deviation | ≤2 mm |
| environmental temperature | 0℃-50℃ |
| Environmental humidity | ＜99% |
| operating noise | ≤75 dB |
| Tightening force | >600 Newtons |
| Hot Stick Tension | >800 Newtons |
| Hot-stick bonding length | ≥ 20 mm |
| Overall dimensions | L4750*W770*H2450mm |
| Movement Material | magnesium aluminum alloy |
| Bow frame material | External carbon steel spraying internal aluminum alloy composition |

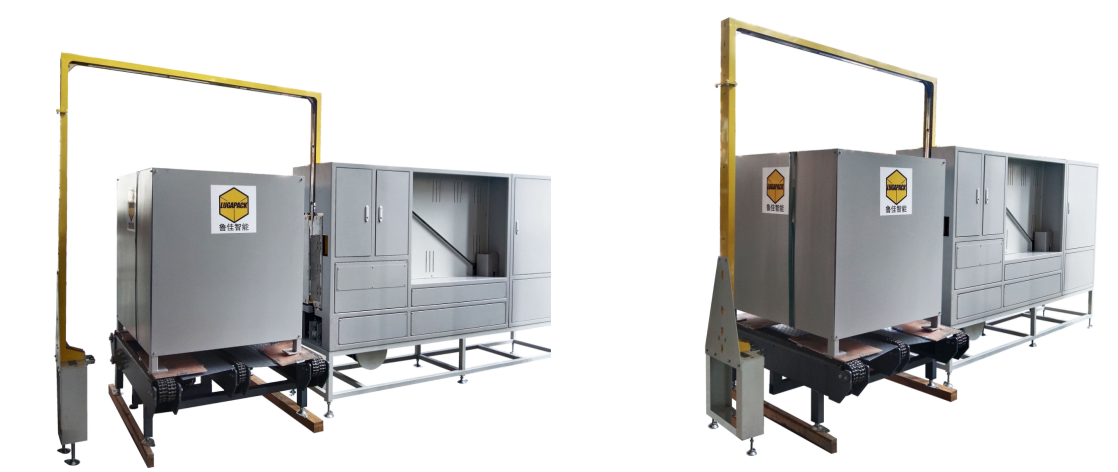

The Sword-Type Strapping Machine is a specialized sword-style strapping device designed for securing large-sized, heavy-duty packaging boxes. This machine utilizes polypropylene plastic strapping as its binding material. During operation, the core mechanism moves to tightly secure the box before performing the strapping action, thereby eliminating the issue of loose strapping on heavy boxes. This model is particularly suitable for strapping large-sized, relatively heavy packaging boxes. The strapping process utilizes photoelectric switches for control, automatically completing 1-2 strapping operations. It features high efficiency, durability, and excellent strapping results.
